National Topographic Data Base (NTDB) GIS Data
The National Topographic Data Base (NTDB) is a vector GIS database that covers the entire landmass of Canada and contains all features normally found on 1:50,000 and 1:250,000 scale National Topographic Series (NTS) maps. The NTDB has been developed by Geomatics Canada. The NTDB has been tiled by NTS map sheets (example 40P/3 for 1:50,000 scale or 40P for 1:250,000 scale). Indexes are available online and at the Map and Data Centre. Each tile contains and XML format indicating the version of the data, available themes, etc.
Coordinate system: Geographic (Lat. and Long.)
Source format: ESRI Shapefiles (ArcGIS)
Updated: To the most current edition of the corresponding NTS map
For scanned and georeferenced topographic maps of Canada, see the CanMatrix product.
Available Themes / Layers
Designated Area
|
• Amusement park
• Auto wrecker • Botanical garden • Camp • Campground • Cemetery • Drive-in theatre • Exhibition ground • Fish ladder • Fort • Gas and oil facilities • Golf course • Golf driving range • Historic site/point of interest |
• Lookout
• Lumber yard • Marina/yacht club • Mining • Oil or gas field • Park/sports field • Picnic site • Seaplane base • Shrine • Ski centre • Solids depot/dump • Stockyard • Zoo |
General
|
• Discontinuity point
|
• NTS territorial limits
|
Hydrography
|
• Boat ramp
• Breakwater • Conduit • Dam • Disappearing stream • Dry river bed • Dyke/levee • Fish pound • Hazard to navigation • Kelp • Lock gate • Navigable canal |
• Navigational aid
• Permanent snow and ice • Rocky ledge/reef • Sand • Seawall • Slip • Spring • Water disturbance • Waterbody • Watercourse • Wharf |
Hypsography
|
• Contour
|
• Elevation point
|
Manmade Feature
|
• Aerial cableway
• Bridge • Building • Built-up area • Chimney • Conduit bridge • Conveyor • Crane • Cross • Cut • Embankment • Footbridge • Liquids depot/dump • Parabolic antenna • Pond partition |
• Ruins
• Runway • Silo • Ski jump • Snowshed • Sports track/race track • Stadium • Tank • Tower • Tunnel • Underground reservoir • Wall/Fence • Well • Wind-operated device |
Power Network
|
• Pipeline
• Transformer Station |
• Transmission line
• Valve |
Rail Network
|
• Railway
|
• Turntable
|
Relief and Landform
|
• Cave entrance
• Esker • Hazard to air navigation |
• Moraine
• Pingo • Tundra polygon |
Road Network
|
• Barrier/gate
• Ferry route • Highway exit • Road |
• Ford
• Limited-use road • Trail |
Toponymy (Place names)
|
• Toponym
|
Vegetation
|
• Cut line
• Peat cutting • Vegetation |
• Vegetation
|
Water Saturated Soils
|
• Palsa bog
• String bog |
• Tundra pond
• Wetland |
Restrictions on Access
Available for public access via Geogratis.
Data Manipulation / Usage
The Map and Data Centre has 2 GIS workstations equipped with ArcGIS 10.0 and other software to explore/manipulate the data. UWO users may also copy requested resources to a data storage device (ex. USB flash drive, CD-R) for research or teaching use outside of the library. Natural Resources Canada should be cited in any maps or graphics generated.
Sample View of the Data

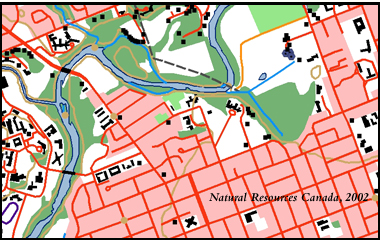

Thames River and Built-up area in London, Ontario
Sample Citation
Lucan, Ontario. [computer file]. National Topographic Data Base sheet 40P/3, Version 3.01. Ottawa: Natural Resources Canada, Geomatics Canada, 2003.
